主頁 ? 產品中心 ? 其它產品 ? 微動開關Switch ? 金屬開關 ? RD19 ?

金屬按鈕開關是利用現代電力電子技能，操控開關管注冊和關斷的時刻比率，保持安穩輸出電壓的一種電源，金屬按鈕開關通常由脈沖寬度調制（PWM）操控IC和MOSFET構成。金屬按鈕開關在規劃中有必要具有過流、過熱、短路等維護功能。

直徑19mm 金屬開關 RD19

• RD19-A2 • RD19-A3

• RD19-B1 • RD19-C2

• RD19-D1 • RD19-D2

• RD19-E2 • RD19-E6

• RD19-F1 • RD19-F2

• RD19-G2 • RD19-H1

• RD19-J • RD19-L2

• RD19-L3 • RD19-S3

• RD19-S4 • RD19-S5

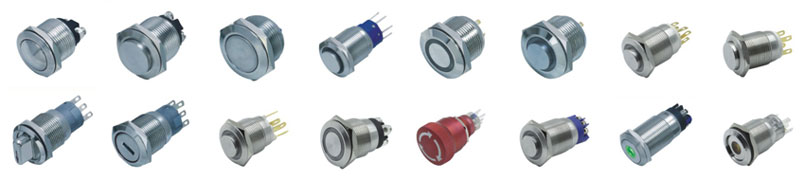

直徑19mm 金屬開關 RD19實拍圖

Part Number	Mounting Hold Size	Switch Rating	Switch Combination	Operation Types	Head Shape	Enclosure Material	Degree of protection	Lamp Type	PDF下載
RD19-A2	φ19mm	3A/250VAC	1NO	Resetable	Round	Nickel plated brass/Stainless stell	IP65,IK08	/	暫無
RD19-A3	φ19mm	3A/250VAC	1NO	Resetable	High Flat	Nickel plated brass/Stainless stell	IP65,IK08	/	暫無
RD19-B1	φ19mm	3A/250VAC	1NO	Resetable	Flat	Nickel plated brass/Stainless stell	IP65,IK08	/	暫無
RD19-C2	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	Ring Illuminated	暫無
RD19-D1	φ19mm	3A/250VAC	1NO	Resetable	Flat	Nickel plated brass/Stainless stell	IP65,IK08	/	暫無
RD19-D2	φ19mm	3A/250VAC	1NO	Resetable	High Flat	Nickel plated brass/Stainless stell	IP65,IK08	Ring Illuminated	暫無
RD19-E2	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	Resetable Self-locking	High Flat	Nickel plated brass/Stainless stell	IP67,IK10	Ring Illuminated	暫無
RD19-E6	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	/	暫無
RD19-F1	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	/	暫無
RD19-F2	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	2 Posilton 3 Posilton	Key	Nickel plated brass/Stainless stell	IP50,IK10	/	暫無
RD19-G2	φ19mm	50mA/36VDC	1NO	Resetable Self-locking	High Flat	Nickel plated brass/Stainless stell	IP67,IK10	Ring Illuminated	暫無
RD19-H1	φ19mm	5A/250VAC	1NO	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	Ring Illuminated	暫無
RD19-J	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	2 Posilton	Round	Aluminum plated color/Stainless stell	IP67,IK10	/	暫無
RD19-L2	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	Resetable Self-locking	High Flat	Nickel plated brass/Stainless stell	IP67,IK10	Ring Illuminated	暫無
RD19-L3	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	Dot Illuminated	暫無
RD19-S3	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	Dot Illuminated	暫無
RD19-S4	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	Character Illuminated	暫無
RD19-S5	φ19mm	5A/250VAC	1NO 1NC/2NO 2NC	Resetable Self-locking	Flat	Nickel plated brass/Stainless stell	IP67,IK10	/	暫無
